Scripts 2 (Source code)

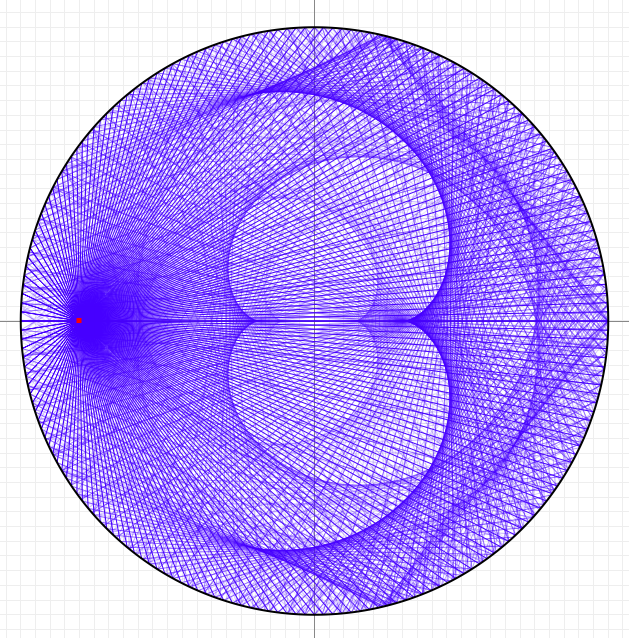

mirror(r, h, v, x, y, ac, ao, s, n=1, mode=1, f=0.8): Plots the reflected light beams by a spherical mirror.
r -> radius of the mirror, if r>0 the inner part of the mirror is reflective, if r<0 the exterior part of the mirror is reflective
h -> x-position of the center of the mirror
v -> y-position of the center of the mirror
x = x1 -> x-position of the origin of the beam (only one beam)
x = [x1, x2, ..., xn] -> x-position of the origin of the beams 1, 2, ..., n (one or more beams)
y = y1 -> y-position of the origin of the beam (only one beam)
y = [y1, y2, ..., yn] -> y-position of the origin of the beams 1, 2, ..., n (one or more beams)
ac -> angle of center of the opening of the mirror
ao -> opening angle of the mirror
s -> number of light beams
n -> maximum number of reflections
mode = 0 -> hides the incident beams and hides the origin of the beam
mode = 1 -> shows the incident beams and shows the origin of the beam
mode = 2 -> hides the incident beams and shows the origin of the beam
f -> reflection index of the mirror
